Project Description

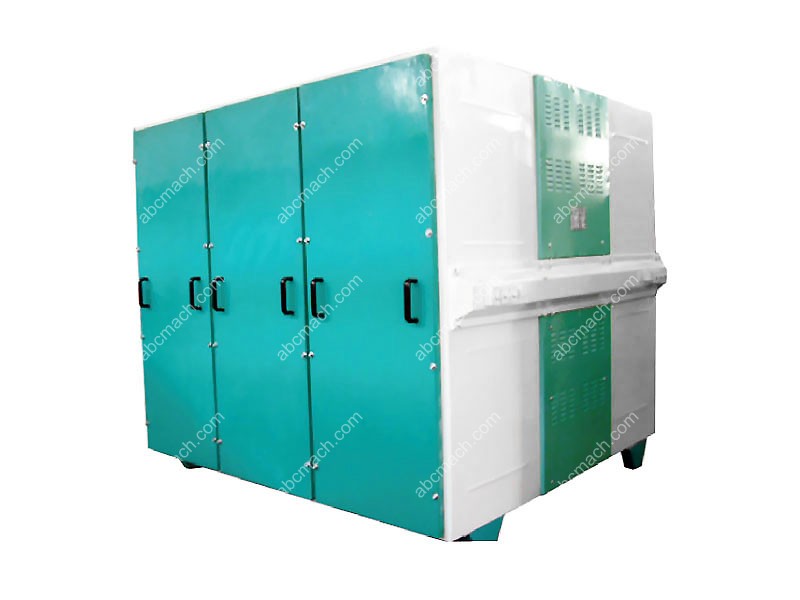

In grain processing line, square plansifter is also named as high efficiency vibrating plansifter. Square plansifter is one of the key equipment for flour milling process and grain grinding production. In all the flour processing machines of AGICO, four mill, plansifter and purifier are three main flour mill machines for sale. Plansifter is generally used for screening and grading after grinding. In addition, square plansifter can also be used as checking sifter.
High Quality Materials for Square Plansifter from AGICO
Square Plansifter is mainly consisted of screen, mesh, feeding device, beams, suspender, discharging mouth and transmission. The main body of square plansifter is made of high quality low carbon alloy steel through CO2 protection welding. The screen box wall adopts sandwich construction filled with insulating materials in order to prevent condensation and corrosion. Adopting vertical transmission and igning ball-bearing, ensures long service life. The door is made of glass fiber reinforced plastics, sealing tightly.
Specifications of square plansifer
| Item | FSFG4×24C | FSFG6×24C | FSFG8×24C | FSFG4×24H | FSFG6×24H | FSFG8×24H | FSFG10×24H |
|---|---|---|---|---|---|---|---|
| Sieve quantity | 4 | 6 | 8 | 4 | 6 | 8 | 10 |
| Size (mm) | 640*640 | 640*640 | 640*640 | 740*740 | 740*740 | 740*740 | 740*740 |
| Meter quantity for each sieve | 18~28 | 18~28 | 18~28 | 18~28 | 18~28 | 18~28 | 18~28 |
| Sieve size (m2) | 21.0~38.2 | 31.6~57.3 | 42.1~76.4 | 30.4~53.4 | 45.6~80.1 | 60.8~106.8 | 95~115 |
| Roller revolution (rpm) | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Diameter (mm) | 60~65 | 60~65 | 60~65 | 60~65 | 60~65 | 60~65 | 60~65 |
| Machine weight (kg) | 2750 | 3700 | 4700 | 3500 | 4900 | 6600 | 7300 |
| Power (kW) | 4 | 5.5 | 7.5 | 5.5 | 7.5 | 11 | 15 |
| Efficiency height (mm) | 2100 | ||||||
Structure of square plansifer
There are three types of plansifter: double nest plansifter, single nest plansifter and square plansifter.

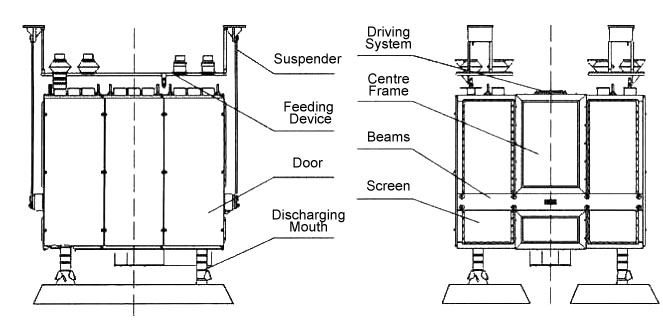

Below is the main structurer of square plansifter, which is a kind of horizontal screening machine.
AGICO can produce high quality square plansifter and other grain processing machines. Please send us email if you need more details of our square plansifter or other four milling machines. You are also welcomed if you have any questions about flour milling process.
