Project Description
After pressing process of edible oil, we often use the oil filtering machine to clean the crude oil firstly in order to remove most of the mechanical impurities before going to the oil refining process. This filtering process can lighten the burden during the oil refining process. What’s more, the oil filtering machine can be used in the oil refining process to remove impurities. AGICO can professional produce and supply various types of oil filtering machines for your oil milling plant. Among these types of oil filtering machines, the plate frame filter and automatic vibrating filter are the two most commonly used machines in this stage.
Plate Frame Oil Filter

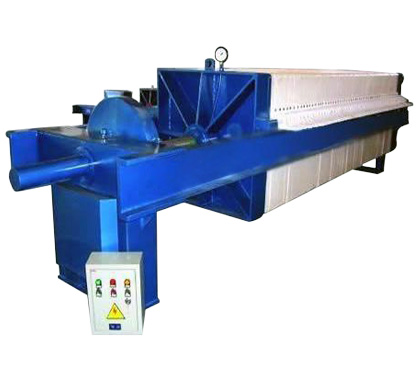

The Plate and Frame Filter press is basic filtering units that is composed of filter frame, filter plate and oil pump. Filter cloth adopts the gear pump to supply oil. The cloth is fitted between the oil filter plate and oil filter frame, which is formed into single filtration chamber under pressure of the compacting device. The filter cloth or paper compressed tightly between the plate and the frame is used to filter the residue from the oil.
Technical parameters of plate frame oil filter
| Model | Filtering Area(m2) | Number of filter plate(piece) | Number of filter frame(piece) | Capacity of the filtering chamber(L) | Weight(kg) |
|---|---|---|---|---|---|
| BAMS1/320-30U | 1 | 4 | 5 | 15 | 350 |
| BAMS2/320-30U | 2 | 9 | 10 | 31 | 400 |
| BAMS3/320-30U | 3 | 14 | 15 | 46 | 455 |
| BAMS4/450-30U | 4 | 9 | 10 | 61 | 720 |
| BAMS6/450-30U | 6 | 14 | 15 | 91 | 800 |
| BAMS8/450-30U | 8 | 19 | 20 | 122 | 880 |
| BAMS12/450-30U | 12 | 29 | 30 | 182 | 1020 |
| BAMS16/450-30U | 16 | 39 | 40 | 243 | 1180 |
| BAMJ20/630-30U | 20 | 24 | 25 | 298 | 1980 |
| BAMJ30/630-30U | 30 | 37 | 38 | 453 | 2350 |
| BAMJ40/630-30U | 40 | 49 | 50 | 595 | 2680 |
Automatic Vibrating filter

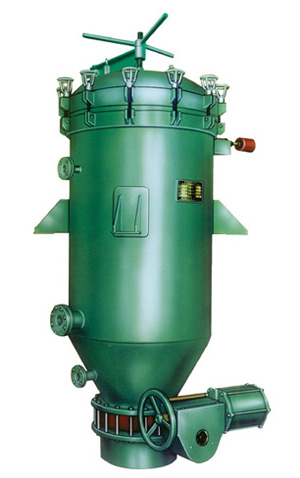

The Automatic vibrating filter (vertical leaf filter) is high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in Oil processing line, chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries. This oil filtering equipment has many advantages such as unique structure, compact volume, high filter efficiency, fineness of filtered liquor, no material wastage, without consumption of filter paper or filter cloth.
Technical parameters of automatic vibrating filter
| Model | Filtering Area (m2) |
Filter cake volume (L) |
Treatment Capacity(t/h) | Working Pressure(Mpa) | Machine Volume (L) |
Net Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Rated pressure | Max Pressure | ||||||
| NYB7 | 7 | 105 | 1-1.8 | 0.1-0.4 | 0.5 | 420 | 600 |
| NYB-10 | 10 | 150 | 1.6-3 | 800 | 900 | ||
| NYB-12 | 12 | 240 | 2-4 | 1000 | 1100 | ||
| NYB-15 | 15 | 300 | 3-5 | 1300 | 1300 | ||
| NYB-20 | 20 | 400 | 4-6 | 1680 | 1700 | ||
| NYB-25 | 25 | 500 | 5-7 | 1900 | 2000 | ||
| NYB-30 | 30 | 600 | 6-8 | 2300 | 2500 | ||
| NYB-36 | 36 | 720 | 7-9 | 2650 | 3000 | ||
| NYB-40 | 40 | 800 | 8-11 | 2900 | 3200 | ||
| NYB-45 | 45 | 900 | 9-13 | 3200 | 3500 | ||
| NYB-52 | 52 | 1040 | 10-15 | 3800 | 4000 | ||
| NYB-60 | 60 | 1200 | 11-17 | 4500 | 4500 | ||
| NYB-80 | 80 | 1600 | 14-23 | 7200 | 6000 | ||
