Project Description

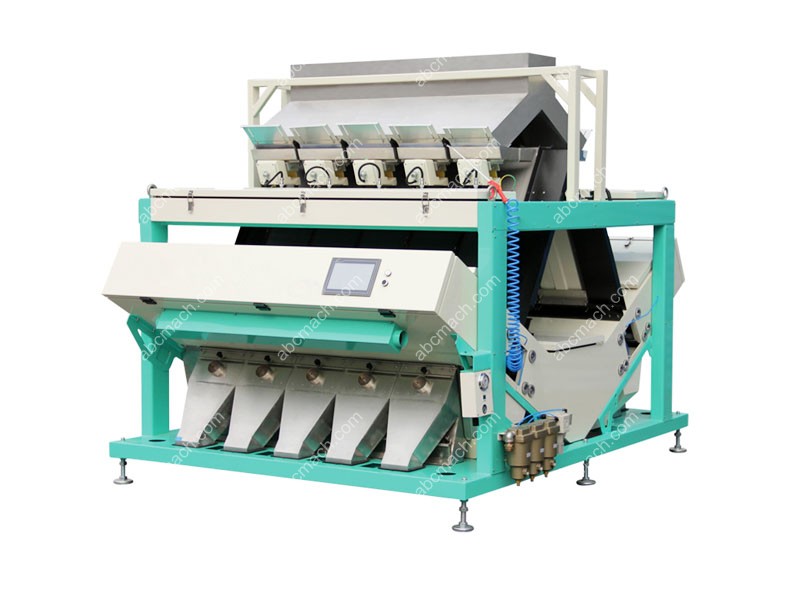

As its name, color sorting machine is used for removing the color of grain cops when processing grain powders. In complete grain processing line, color sorting machine (color sorter) is a common equipment for flour grinding. It is designed for photoelectric color selection of grain processing, including rice, corn, seeds and soybeans. The color sorting machine can effectively eliminate the color difference of grain, and remove the grain with strange color. After photoelectric color selecting, you can get high purity grain with normal color.
Color sorting is generally after grading process. Then, depending on the grain quality and quantity you can decide to choose complete color sorting or partially color sorting.
Specifications of color sorting machine in flour milling
| Product Name | SKC T-2 SE Ⅱ CCD | SKC T-3 SE Ⅱ CCD | SKC T-4 SE Ⅱ CCD |
|---|---|---|---|
| Model | 6SXZB-126II 6SXZC-126II |
6SXZB-126II 6SXZC-189II |
6SXZB-126II 6SXZC-252II |
| Production Output(t/h) | 0.3~1.5 | 0.5~2.5 | 0.8~3.5 |
| Sorting Accuracy(％) | ≥99.6 | ≥99.6 | ≥99.6 |
| Carry Ratio (BAD:GOOD) | ≥5:1 | ≥5:1 | ≥5:1 |
| Weight(Kg) | 670 | 820 | 970 |
| Smallest Resolution(mm2) | 0.04 | 0.04 | 0.04 |
| Power (kW) | 1.4 | 1.8 | 2.2 |
| Qualities Promises | (ONE YEAR) | (ONE YEAR) | (ONE YEAR) |
| Dimension L×W×H (mm) | 1320×1500×2253 | 1660×1500×2253 | 2020×1500×2253 |
| Radrate Heat Way | WIND COOLING | WIND COOLING | WIND COOLING |
| Power Supply (Voltage/Frequency) |
220V／50Hz | 220V／50Hz | 220V／50Hz |
| FOB China port | 56,370 | 59,825 | 63,235 |
Features of Color Sorting Machines for Grain Processing
- High Resolution CCD System
Adopt colorful CCD image acquisition system, realize the achieve of red, green, and blue material color, the color selector has the sense of human feeling, with material selection more real, accord with your request.
The highest resolution is 0.15 mm, precise identification of each sesame seed color, high precision of special lens to guarantee image clearly and accurately,
- Special Image Processing Method
For small particles of sesame, using special process, combined with red, green, and blue color, in color space to analysis and classification of material, which ensure accuracy of material identification.
- High Quality Solenoid Valves
High quality imported solenoid valve, precise control of air flow and direction, eliminate the material more accurate, greatly improving eliminate rate.
The Unique Feeding System
Special feeding system to ensure the uniformity of material flow, and also reduce the material move up and down to achieve the best image acquisition and eliminate effect.
- Excellent Eliminate Rate (Carry Ratio)
Color high resolution CCD system + special image processing +high quality nozzle system =excellent eliminate rate
- Simple Operation and Easy Use
Concise optical system design, and precise automatic correction system, which combined elaborate design interface that greatly simplifying the machine commissioning and use of complexity, simple operation, easy use.
With the improvement of people’s living standard, their requirement on rice quality is also increasing. Simply removing bran and impurities no longer meet the requirement of the market and consumer. Feel free to contact us if you are interested in our rice/soybean color sorter machine and grain grinding mill, or have any questions on grinding flour or wheat.
